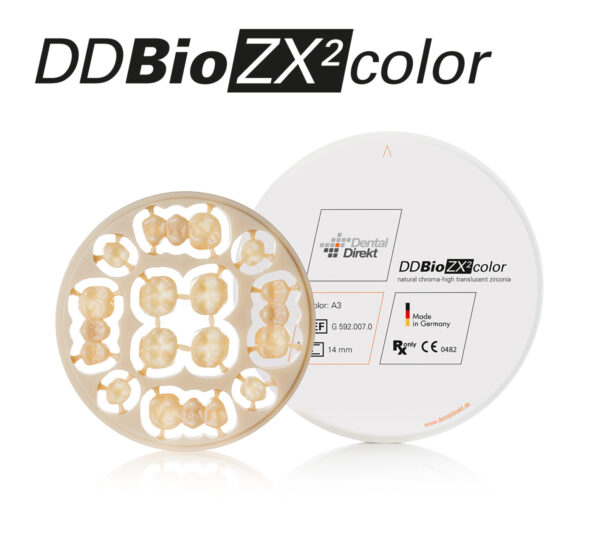

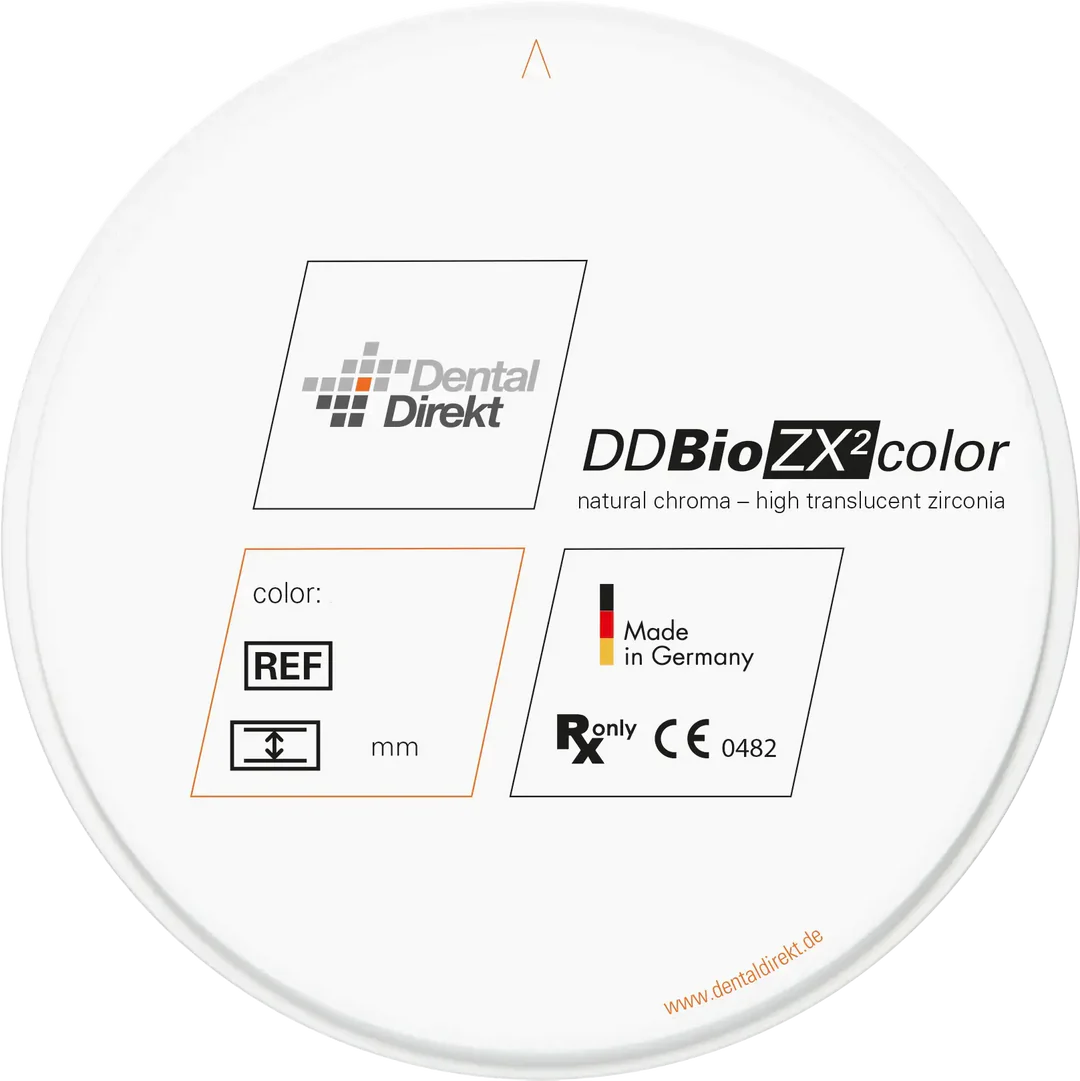

DD Bio ZX² color zirconia

Physical Properties

Type: Monochrome

Material: 3Y-TZP-LA

Strength: 1150 ± 150MPa

Indications
Anatomically reduced crown, Fully anatomical (monolithic) crown posterior tooth, Primary telescope, Anatomically reduced bridge (up to 3 links), Anatomically reduced bridge (up to 14 links), Fully anatomical (monolithic) bridge (up to 3 units), Fully anatomical (monolithic) bridge (up to 14 units), Hybrid abutment, and web.

Blank Thickness

Shade

Clear

Price range: $60.00 through $92.00

SKU: N/A Category: Zirconia CAD/CAM Discs & Supplies Tags: DDBio, Materials, Zirconia, ZX2 Brand: Direckt Dental

Description

Natural Chroma – highly translucent zirconia according to VITA® shades

With the DD Bio ZX ² system, the well-known, positive properties of classic zirconium oxide are combined with a significant increase in light transmission. A material for all highly aesthetic restorations.

Perfect for:

monolithic crowns and bridges of any span
Especially monolithic bridges
Cut back (one layer)
Highly aesthetic veneering work of every span

Physical Properties

Characteristic	Unit	Value
WAK (25 – 500°C)	[10 ^-6 K ^-1]	~ 10.6
Chemical solubility	[µm/cm ²]	≤ 11
Fracture toughness (KIC)	[MPa√m]	> 8.0
Bending strength*	[MPa]	1150±150

Chemical composition [wt.%]

ZrO2 + _HfO2 + _Y2O3 _{_} _ _{_}	≥ 99.0
Y2O2 _{_} _ _{_}	< 6
Al2O2 _{_} _ _{_}	≤ 0.15
Other oxides	< 1.0

Product Catalog

DD medical Zirconia

Sintering Guide DD Medical Zirconia

Nesting Recommendations DD

Safety Data Sheet DD

Additional information

Weight	0.5 lbs
Dimensions	5 × 5 × 2 in
Blank Thickness	14mm, 20mm, 25mm, 18mm
Shade	A1, A2, A3, A3.5, A4, B1, B2, B3, B4, C1, C2, C3, C4, D2, D3, D4
